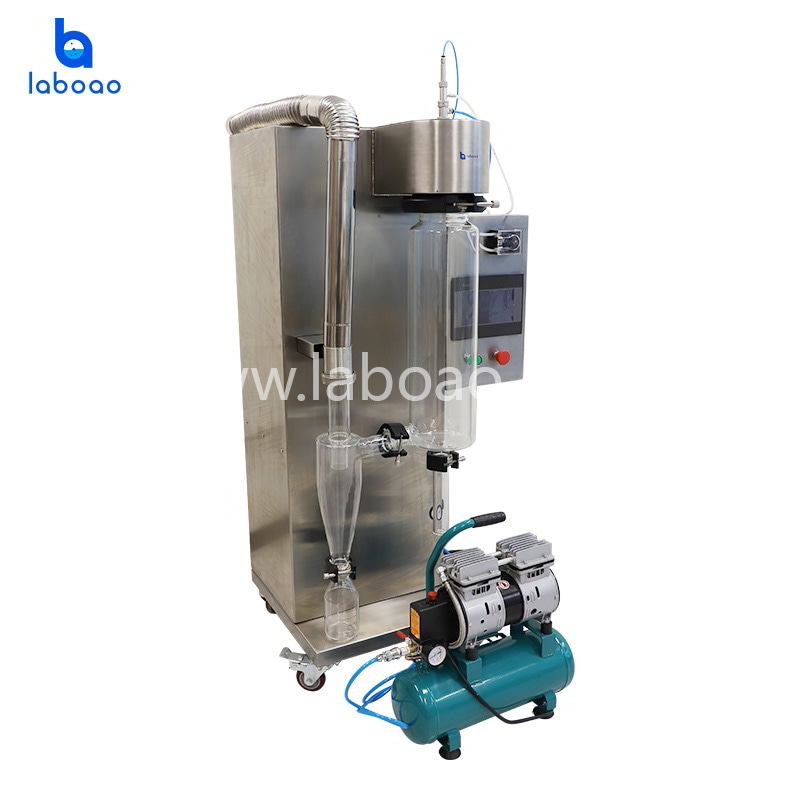

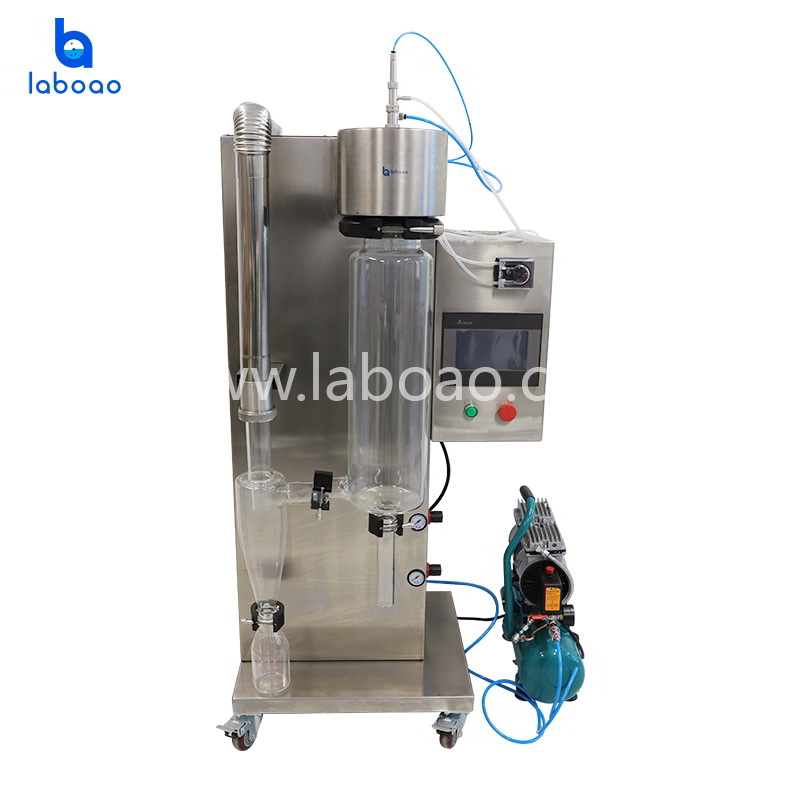

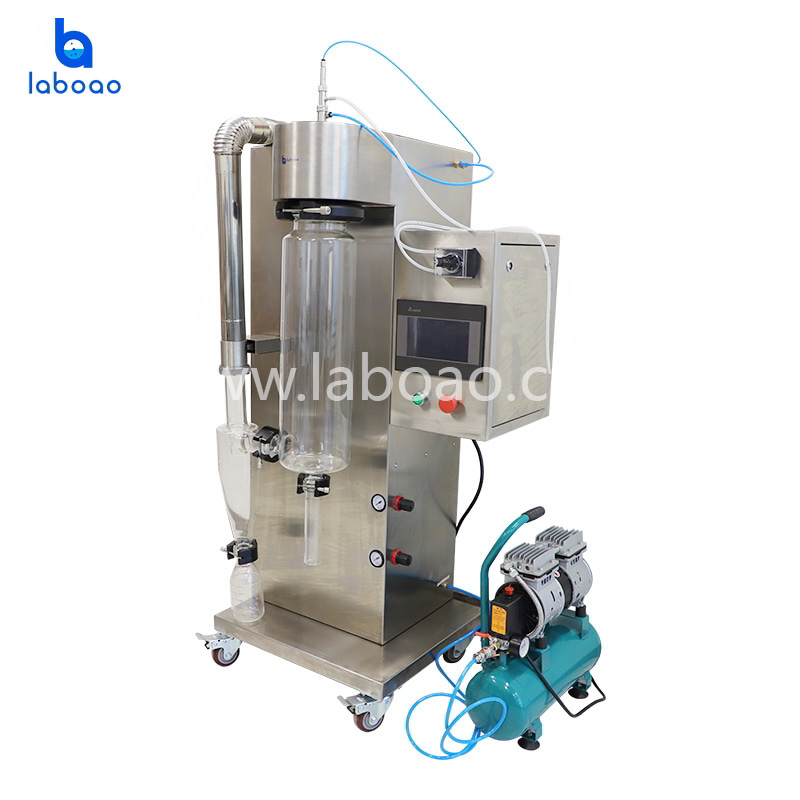

Small Lab Spray Dryer

LSP-1500 lab scale spray dryer can produce a dry powder from a liquid or slurry by rapidly drying with a hot gas.
  • ModelLSP-1500
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • Wechat

    WeChat Chat

VIDEO

DETAILS

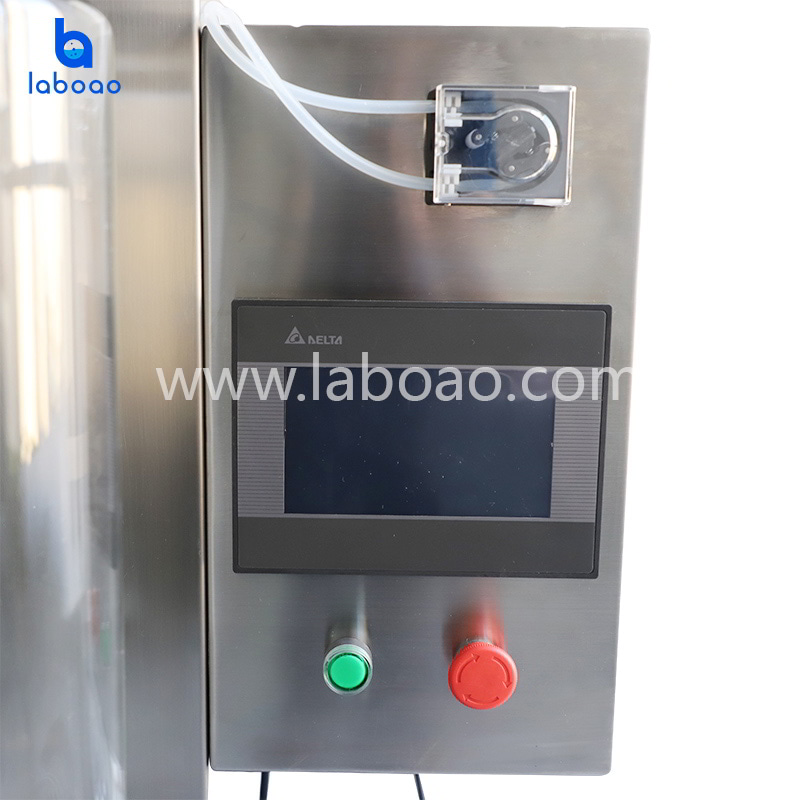

Small Lab Spray Dryer detail - One button start, 7 inch LCD touch screen.
One button start, 7 inch LCD touch screen.
Small Lab Spray Dryer detail - LCD touch screen, Display and setting data.
LCD touch screen, Display and setting data.

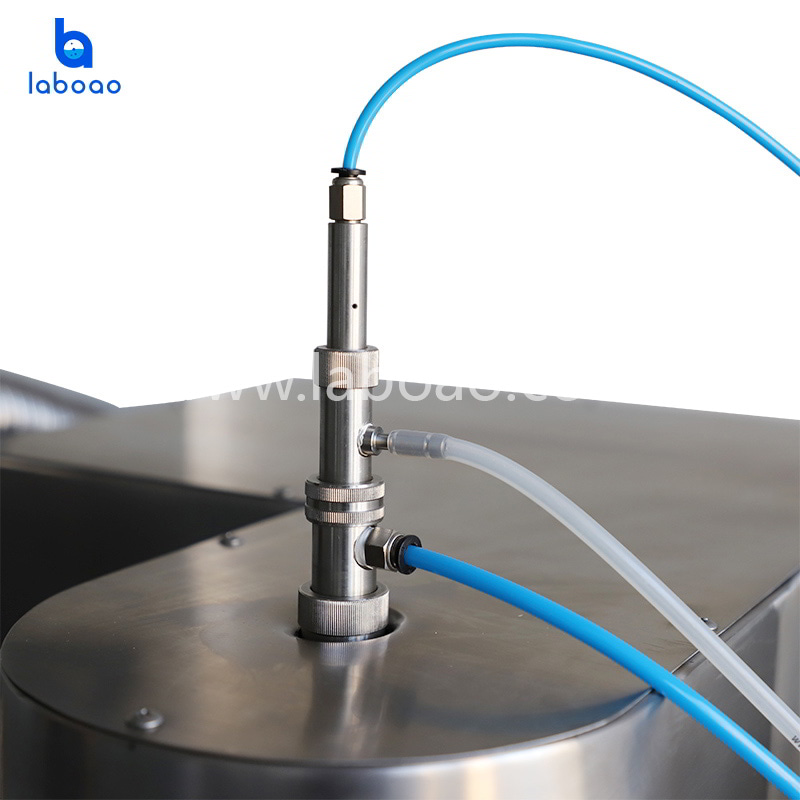

Small Lab Spray Dryer detail - SS316 atomizer, nozzles are optional.
SS316 atomizer, nozzles are optional.
Small Lab Spray Dryer detail - With USB interface, can download data.
With USB interface, can download data.
Small Lab Spray Dryer detail - High borosilicate glass material collecting bottles.
High borosilicate glass material collecting bottles.
Small Lab Spray Dryer detail - Full oil-free air compressor, noise less than 50db
Full oil-free air compressor, noise less than 50db

DESCRIPTION

LSP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.

FEATURES

1. Special for lab research, Min 20-30ml liquid to finish one test.

2. All borosilicate glass for easy visual monitoring of process status.

3. Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass, which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4. Easy to clean and very simple to assemble and break down.
5. The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands.

6. inlet/outlet temperature is accurate controlled by PID

7. The unit is self contained and supplied complete and ready for immediate operation.

8. Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.

9. Product feeding with RS2559605 rotary pump, capacity is adjustable

10. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

SPECIFICATIONS

Model

LSP-1500

Max. capacity

1500-2000ml/h

Temperature range of Inlet air

30 -280

Temperature range of outlet air

40 -120

Precision of temperature

± 1

Dryer time

1.0-1.5 S

Speed of squirmy pump

30-2000ml/h,

Consume of dryer air

0-330m3 /h,   max pressure: 686Pa

Consume of spray air

0-4.2m3 /h,   spray pressure: 2-5bar

Spray system

2 liquid nozzles with standard 0.7mm jet

options of 0.5/1.0/1.5/2.0/2.5mm

Spray direction

downwards   co-current

Power

3.5KW     220V

Voltage

220/240V-50/60HZ-13amps

Dimensions

650×500×1550   ( mm ) L x W x H

Weight

120kg
