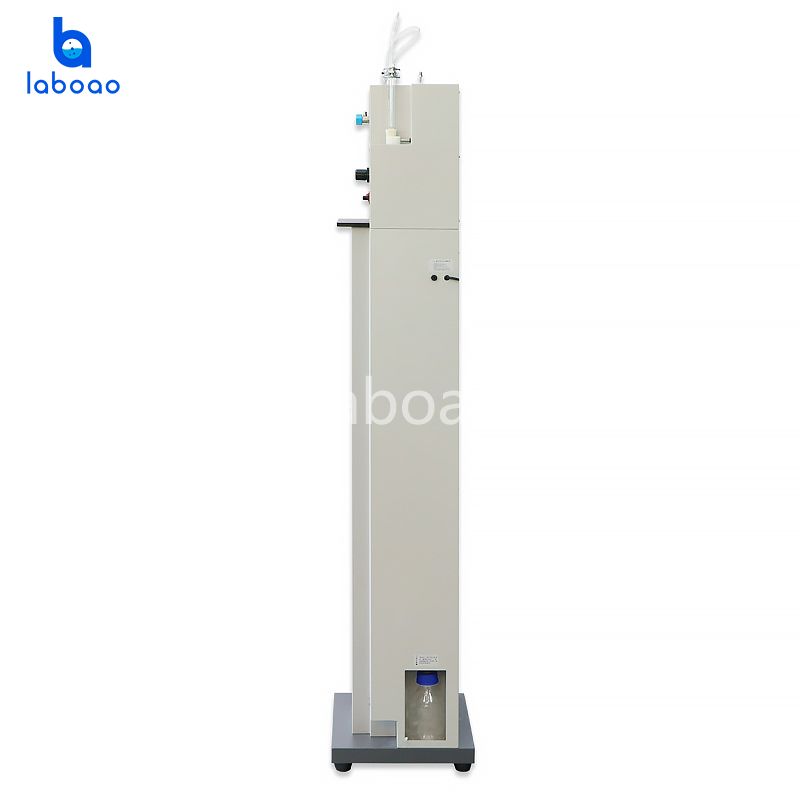

Liquid Petroleum Products Hydrocarbon Tester

The instrument is a kind of professional instrument determining percentage of aromatic hydrocarbon,olefin and saturated hydrocarbon in petroleum fraction
  • ModelLYD-11132
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • Wechat

    WeChat Chat

Download


DESCRIPTION

The instrument is designed and made as per national standard of People’s Republic of China GB/T 11132 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption and ASTM D 1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption.It is suitable to make the main hydrocarbon of liquid petroleum products shown on the silica gel adsorption column with fluorescent indicator.Then calculate it’s volume percentage.This will be regarded as the quality measurement index of engine fuel,aviation fuel and other fuel oils.

The instrument is a kind of professional instrument determining percentage of aromatic hydrocarbon,olefin and saturated hydrocarbon in petroleum fraction

FEATURES

1. Vertical type and uni-body design. No need to install.

2. This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.

3. Two pieces of imported precise glass tube adsorption column.Convenient for operation.

4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.

SPECIFICATIONS

Model

LYD-11132

Power supply

AC(220±10%)V,50Hz

Maximum power consumption

600W

Pressure regulating range of   reducing valve

(0400)kPa

Electric agitator

independently controlled for   each way

Ultraviolet light source pipe

1220mm in length,wavelength is   365mm±5nm

Illuminating lamp

1220mm in lengthpower is 40W

Air supply

Nitrogen cylinder (or air   compressor,compressed air bottle)

Ambient temperature

(1535)

Relative humidity

≤85%

Dimension

350mm×400mm×1770mm

Net weight

24kg
