1-5L Explosion Proof Three Layer Jacketed Glass Reactor

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.
  • ModelLGR-T Series
  • BrandLABOAO
  • StockIn Stock
  • CustomizedOEM/ODM
  • CertificationCE
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • Wechat

    WeChat Chat

Download

DESCRIPTION

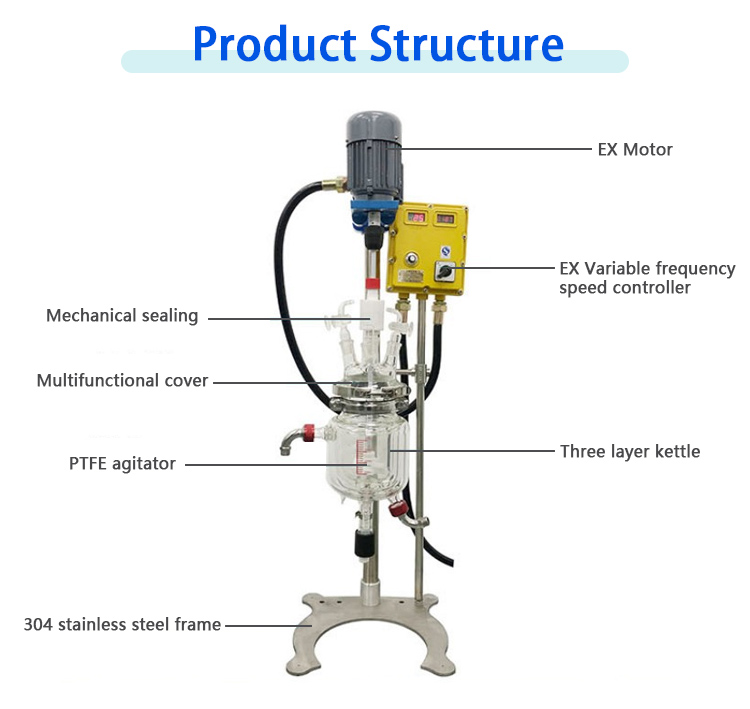

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution. The inner jacket of the three-layer glass reactor is used for heating or cooling. The outer jacket is used for vacuuming, and the refrigerating or heating temperature of the materials in the kettle can be maintained as much as possible under the vacuum state of the outer interlayer. The materials are reacted in the reaction kettle, and after the reaction, the materials are discharged from the PTFE outlet at the bottom of the kettle.


FEATURES

1. Explosion-proof: explosion-proof motor and explosion-proof frequency converter;

2. Mechanical seal: The internal mechanical seal is a combination of moving and static rings, which is wear-resistant and corrosion-resistant, and has good sealing performance;

3. Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly;

4. Three-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties. High temperature 250℃ to low temperature -80℃ in large temperature range;

5. Circulating medium import and export: the interface adopts the screw type, which is convenient to connect the temperature control equipment;

6. Discharge valve: Top-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion.

SPECIFICATIONS

Model

LGR-1T

LGR-2T

LGR-3T

LGR-5T

Volume

1L

2L

3L

5L

Outer diameter   of kettle body

150

180

200

230

Outer diameter   of kettle mouth

150

150

150

180

Motor Power

90W

60w

Rotating speed

0-400rpm

Reaction bottle   cover port

5 ports

Body material

Three-layer   glass, high borosilicate glass GG17, expansion coefficient 3.3

PTFE stirring   paddle

Single-layer   push

Sealing method

Self-lubricating   mechanical seal to prevent wear debris from falling off

Vacuum

-0.098Mpa

Reaction   temperature of kettle body

-90~250

Ambient   temperature

5~40

Power

220V 50HZ

APPLICATION

  • Application of Jacketed Glass Reactor in Chemical Synthesis
    Chemical Synthesis
  • Application of Jacketed Glass Reactor in Pharmaceutical Production
    Pharmaceutical Production
  • Application of Jacketed Glass Reactor in Petrochemical Industry
    Petrochemical Industry
  • Application of Jacketed Glass Reactor in Material Science
    Material Science
  • Application of Jacketed Glass Reactor in Food and Beverage Industry
    Food and Beverage Industry
  • Application of Jacketed Glass Reactor in Environmental Analysis
    Environmental Analysis
  • Application of Jacketed Glass Reactor in Academic Research
    Academic Research
  • Application of Jacketed Glass Reactor in Biochemical Engineering
    Biochemical Engineering

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of jacketed glass reactor machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
7*24Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
