Gels Texture Analyzer

The Texture tester is an instrument used for testing the physical properties of gels and gel-like materials because of the instruments' sensitivity, reproducibility and fixtures for gel applications. It is widely used in the pharmaceutical, food, chemical and other industries.
  • ModelJS-II/JS-III
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • Wechat

    WeChat Chat

Download

DESCRIPTION

Gels Texture Analyzer system is mainly used to determine the freezing strength of gelatin in a specified environment. The freezing strength of gelatin is an important indicator that reflects the level of gelatin production technology and controls the quality of gelatin production.


System composition:

Texture Analyzer x1 set

Precision constant temperature monitoring cold water tank x1 set

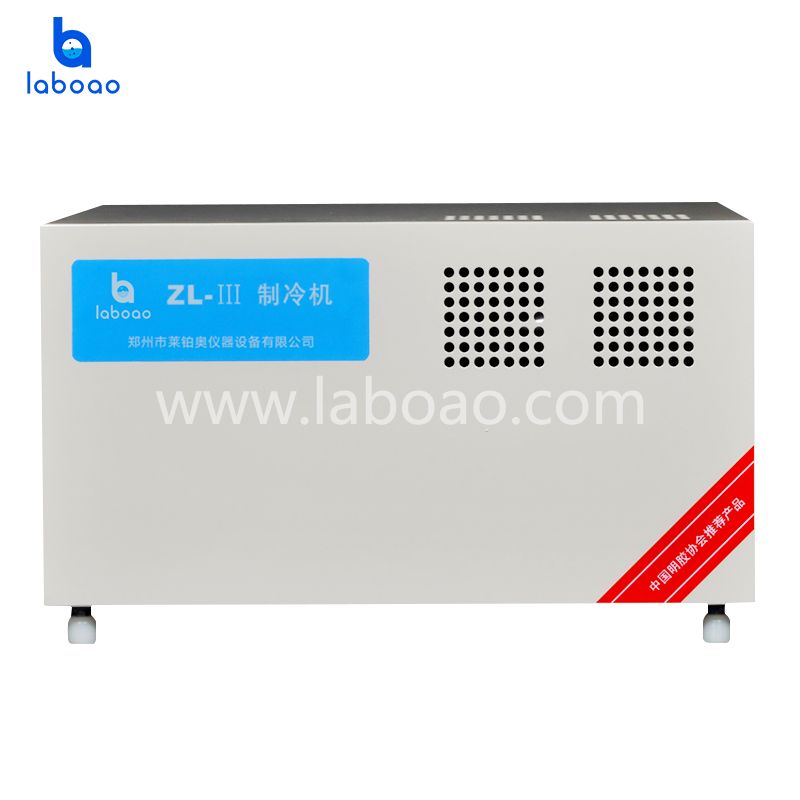

High-efficiency refrigerator x1 set


Applicable standard:

◆National Standard "Food Additive Gelatin" GB6783-2013

◆National standard "Medicinal Gelatin Hard Capsules" GB13731

◆Industry standard "Medicinal Gelatin" QB2354-2005

◆Industry standard "Industrial Gelatin" QB/T1995

◆Industry standard "Bone glue" QB/1996

◆《Edible Gelatin》QB/T4087-2010

◆Compliant with current Chinese GMP regulations

◆Meet the requirements of the 2020 edition of the Pharmacopoeia for the measurement time limit

FEATURES

1. High-definition LCD liquid crystal display, users can enjoy intelligent operation according to the screen prompts, and Chinese characters and quantitative indicators are given for each operation process.

2. Powerful data processing capability, can automatically submit parameters such as the average value, final value or peak value of the tested glue samples for you.

3. Provides 4 sampling measurement modes: single step, hold, cycle, and automatic, making your operation more convenient.

4. The automatic measurement mode can help you obtain the freezing strength value more quickly, accurately and more closely.

5. Provides 5 sampling speeds; 0.1mm/s 0.2mm/s 0.5mm/s 1mm/s 2mm/s. Select high-speed measurement, without the probe pressing into the glue surface depth error.

6. The sampling depth can be preset arbitrarily (1mm----60mm).

7. The instrument provides 2 kinds of sampling results, and with different test combinations of sampling speed and sampling mode, it can submit two kinds of final value or peak value for users.

8. Professional grade high precision pressure sensor.

9. High-precision mechanical transmission and equipped with 4-level shock-proof design.

10. Users can verify the measurement accuracy of the instrument itself. (use standard weights)

11. Automatic correction of nonlinear errors, automatic fault diagnosis and alarm, automatic over-range protection, automatic error correction prompt.

12. JS-III with micro-printer, standard serial printing, convenient to store experimental data.

SPECIFICATIONS

Model

JS-II

JS-III

With printer

NO

YES

Display

Intelligent LCD display

Test range

5-1000Bloomg

Test accuracy

±0.3%

Resolution

0.1g

Repeated measurement error

±1 Bloomg

Sampling depth

1-60mm

Stroke error

≤±0.1mm

High-speed measurement stroke error

≤±0.1mm

Measured value

in Bioom g

Measurement cylinder diameter

12.700±0.010mm

Bottle capacity

Capacity=150ml  Inner   diameter=59mm Height=85mm

Machine power

60W

Dimensions

260mm*260mm*450mm (LxWxH)

Computer dynamic monitoring probe is pressed into   the glue surface depth error
