Pilot Freeze Dryer Manufacturer and Supplier in China
0.1㎡ electric heating top press freeze dryer 0.1㎡ electric heating top press freeze dryer

0.1㎡ electric heating top press freeze dryer

It is not only suitable for the freeze-drying of conventional materials in bulk (liquid, paste, solid), but also for the drying of the vials bottled materials. When preparing for lyophilization, the materials are dispensed into the vials as needed, and the caps are floated and frozen. Drying, after the end of drying, the capping device is pressed tightly to avoid secondary pollution, re-adsorb moisture, and easy to store for a long time.
  • BrandLABOAO
  • ModelLFD-10FB
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water.

LFD-10FB (electric heating) freeze dryer, lyophilized in situ (patented product). It changes the cumbersome operation of the past drying process, prevents material contamination, and automates the drying and sublimation. This model has shelf heating and programmable functions, can remember the freeze-drying curve, and comes with u disk extraction function, which is convenient for users to observe the lyophilization process of materials.

FEATURES

1. The company's patented product square warehouse in-situ vacuum freeze dryer, pre-freezing, drying in-situ, easy to operate, good drying effect.

2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and observable for lyophilization.

3. Inflatable (discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

4. Specialized gas guiding technology, cold trap for uniform ice trapping and strong ice trapping ability.

5. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise.

6. The patented technology of the separator and the fuzzy control technology of the separator temperature, the shelf temperature difference is small, the temperature control precision is high, and the drying effect is uniform.

7. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

8. Powerful sensor calibration to ensure accurate measurement of long-term use.

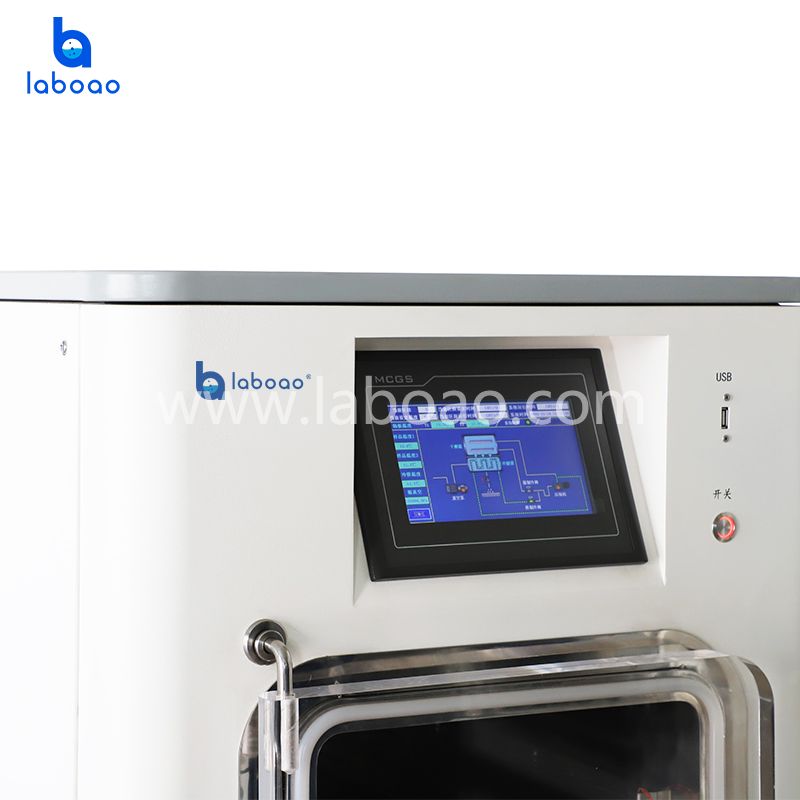

9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control precision, stable and reliable performance.

10. Professionally designed FD-EMB control system can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

11. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

12. Flexible manual + automatic control mode, manually used for groping process, automatically used for batch production.

13. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

14. User level and password can be set and decentralized for operation management.

SPECIFICATIONS

Model

LFD-10FB

Freeze-dried   area

0.1m2

Shelf size

400 × 270mm

Material   plate size

395 × 265mm

Number of   material trays

1

Laminar   spacing

70mm

Shelf   temperature range

-50 ° C ~   +70 ° C

Cold trap   temperature

≤ -60 ° C   (no load), optional ≤ -80 ° C (no load)

Water   catching capacity

≥6KG/24h

Pumping rate

4L/S

Ultimate   vacuum

≤ 5 (no   load)

Installed   power

2000w

Host weight

210kg

Mainframe   dimensions

655 × 640 ×   1200mm

Cooling   method

air cooling

Plate   loading material

1L (material   thickness 10mm)

Vials bottle   Ф 12mm

777

Vials bottle   Ф 16mm

434

Vials bottle   Ф 22mm

220

OPTIONAL

· Cold trap temperature -80°C

· Eutectic point tester

· Vacuum pump anti-return device

· Oil mist filtration system

· Vacuum regulation system

· Automatic backfill / drainage system

· LYO-MEGA Software System

· Mobile APP monitoring system

· Backfill filter

· External hanging device

· Non-standard customization

CONFIGURATION LIST

· Freeze dryer host ×1

· Vacuum pump × 1

· Sample tray × 1

· Circuit diagram × 1

· Instruction manual ×1

· Product warranty card × 1

· Product certificate × 1

· Other accessories
