DESCRIPTION

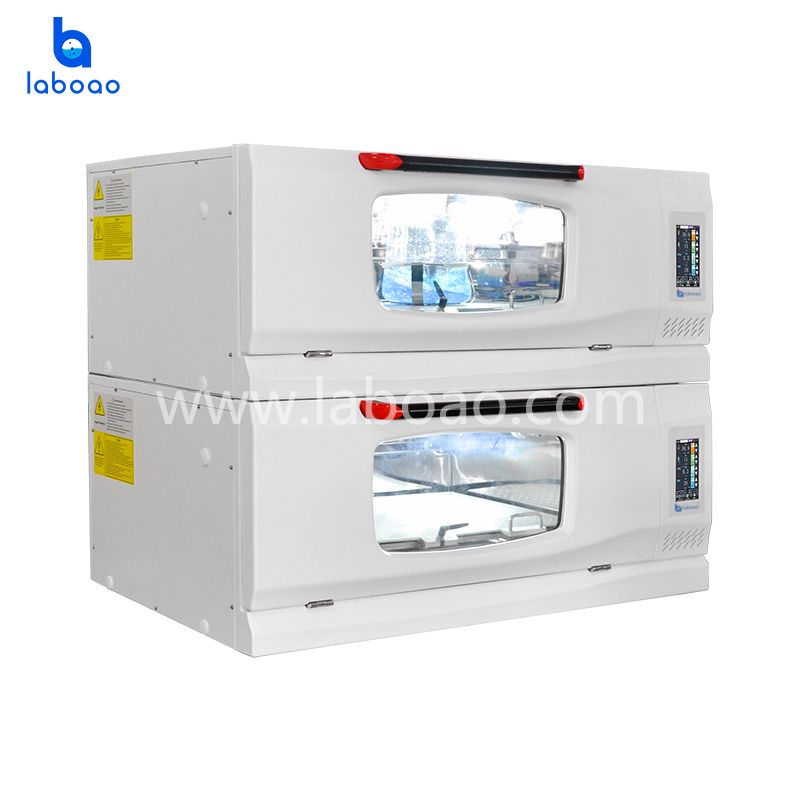

In addition to having the same functions as the IS-9 series, this constant temperature oscillator also achieves extremely precise temperature uniformity. In particular, the outer shell is made of light and strong material, which greatly reduces the total weight. The appearance is streamlined and more modern. At the same time, the thermal insulation performance is improved, and the variable frequency refrigeration technology is added to expand the temperature control range, reduce energy consumption, and provide a better platform for cell culture.
FEATURES
1. 7" High-Res Color Touch Screen with intuitive graphic interface
2. Chamber design features smooth rounded internal corners for easy cleaning
3. Capacity is 6 x 5L Erlenmeyer shaker flasks
4. Infra-Red(IR) CO2 sensor for precise arid reliable CO2 detection
5. Optional WiFi and RDS485 monitorin and control
6. Set of UV f fights for easy sterilization
7. Audible and visual alarms
8. Mirror finish, pharmaceutical grade stainless steel chamber
9. Stackable design up to 3 units.
10. 25mm and 50mm orbit models available
SPECIFICATIONS
Model | LIS-18 | LIS-18C | LIS-18C |
Temp. Range | Room Temp. Minus 20℃~60℃ (Lowest Temp. is 4℃) |
Power | ≤1000W |
Speed | 0 (Stop)，30~300rpm |
Speed Accuracy | ±1rpm |
Orbit Diameter | φ26mm | φ50mm |
CO2 Sensor | NA | IR |
CO2 Control Range | NA | 0~20% |
CO2 Display Accuracy | NA | 0.1 |
CO2 Control Accuracy | NA | ±0.2%(@ 5%) |
Recover Time on the Temp. Close Door | ≤6min（@ 37℃） |
Recover Time on the CO2 Close Door | NA | ≤6min（@ 5%） |
Application range of CO2 temperature | NA | 5~60℃ |
RH Type | Active Humidification |
Max. Humidity | Ambient Rh~95% |
Programing Numbers | 12 Sections |
Disinfection | UV |
Door Open Direction | Downward |
Display | 7” Color Capacitance Touch Screen |
Touch Screen Type | Capacitance Type |
Auto-lock | Yes |
Auto-close Screen | Yes |
Protect Set Parameters | Passwords Protect |
Display the Date | In a week |
Date Curve Display | Temp. Curve,
Speed Curve, | Temp. Curve, Speed Curve,
CO2 Curve, RH Curve |
Max. Capacity | Clamp Capacity: 25mlx134/ 50ml×134/ 100ml×60/ 150ml×60/ 200ml×60/ 250ml×60/ 500ml×32/ 1000ml×22/ 2000ml×15/5000ml(Thomson)×6 Sticky Mat: 25mlx134/ 50ml×187/ 100ml×112/ 150ml×104/ 200ml×84/ 250ml×76/ 500ml×40/ 1000ml×28/ 2000ml×15/5000ml(Thomson)×8 |
|
Max. Load | 20Kg |
Platform Dimensions | 900×560mm |
Temp. Uniformity | ≤±0.15℃（@ 37℃） |
Temp. Volatility | ≤±0.12℃（@37℃） |
Temp. Display Accuracy | 0.1℃ |
Heat Power | ≤800W |
Cool Power | ≤300W |
Automatical Defrost | Yes |
Timer | 0-999Hours59min. |
U Disk Download Date | Yes |
Date Store Years | ＞912 days |
Date Store Time | 1 min. |
Date Store Types | Time, Temp, Speed, Machine Status | Time, Temp, CO2%, Speed, RH, Machine Status |
Noise Level | ≤55dB |
Water Sparge Resistant | Yes |
Interface Languages | Chinese or English |
Auto-run after Power Recovery | Yes |
RH Control | Option |
Passive Humidifier AutomaticWater | Option |
Mobile Monitor and Control by WiF | Option |
PC Monitor and Control by RS485 (Option) | Option |
Net Weight | 200Kg |
Internal Dimensions | 985×775×444mm |
Outside Dimensions | 1355×875×535mm |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of incubator shaker machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
AFTER-SALE WARRANTY
Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
7*24Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
